Viewing a list of global resources
Use the Dedicated Cloud Compute portal Dashboard to see a global view of your dedicated resources specific to each data center for Lumen® Dedicated Cloud Compute. The portal Overview tab lists the data centers where you have DCC services and lists the number of virtual machines, physical CPUs, physcial and available RAM, and storage in each data center. The Compute and Storage tabs show information on clusters hosts, instances, and storage similar to the information seen in the Managed Services portal. You can also view a list of data center resources or view the resources at a cluster view.
Note: To access the Dedicated Cloud Compute portal, you must have a username and password for Managed Services portal.

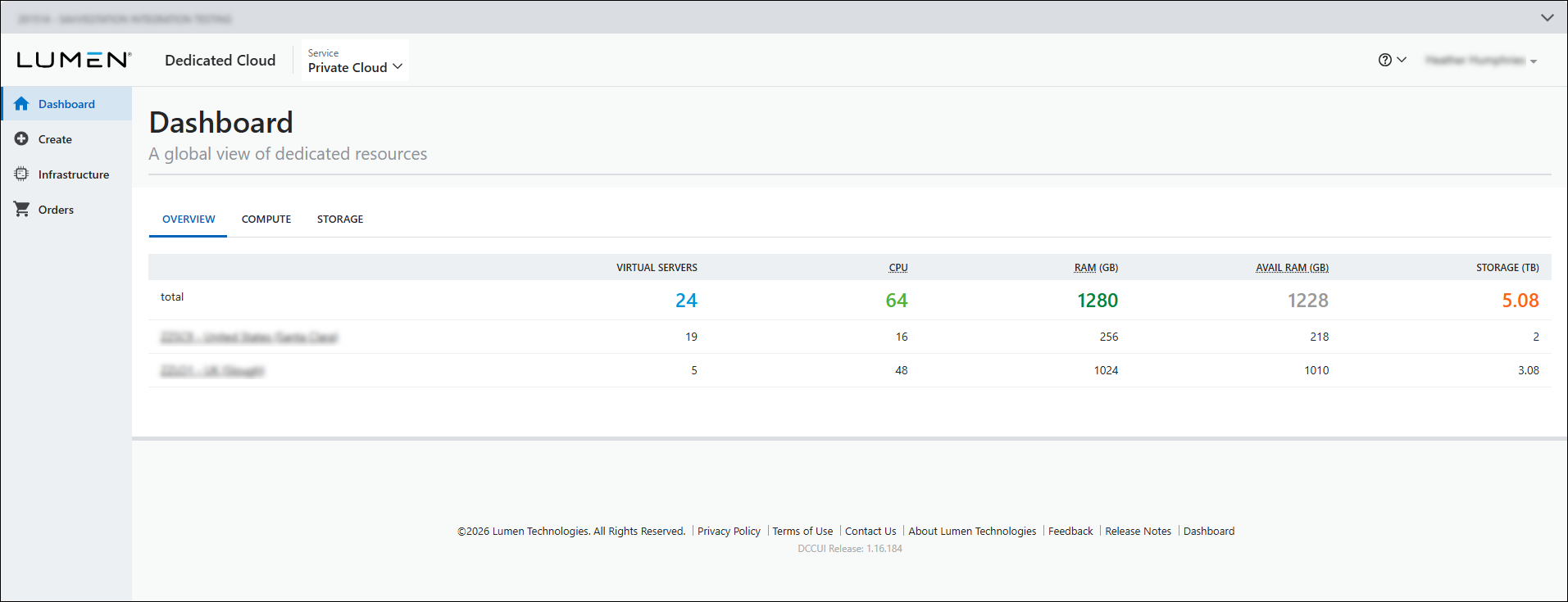

Overview
To view a list of global data center resources:
- Sign in to the Managed Services portal.
- Using the left navigation, click Dashboard, then click Overview.
The Dedicated Cloud Compute portal shows the global data centers listed for your organization.
- Click a data center name to view a list of resources specific to that data center. When you click a data center name, a side panel opens on the Infrastructure tab showing you a hierarchy of your resources.

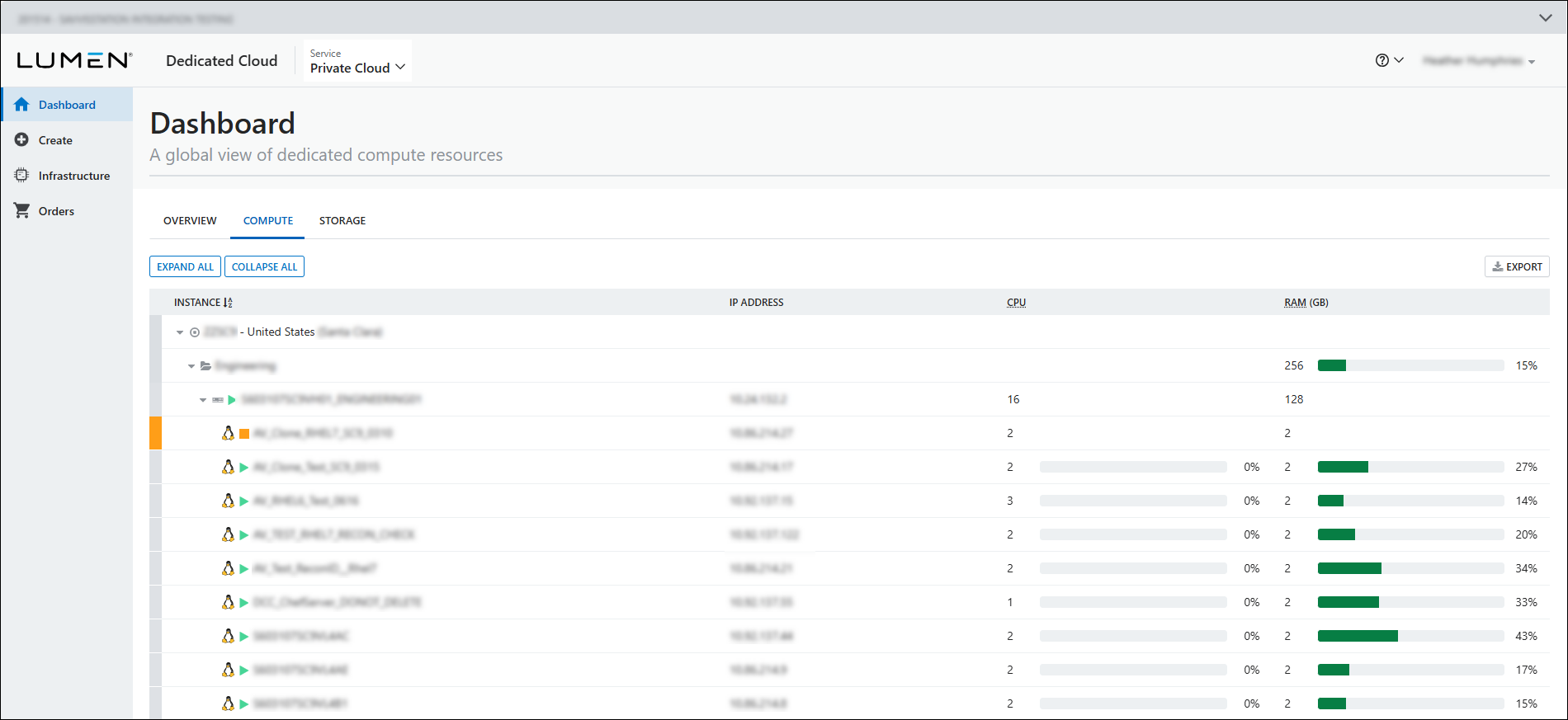

Compute
To view a list of global data center compute resources:
- Sign in to the Managed Services portal.
- Using the left navigation, click Dashboard, then click Compute.
The Dedicated Cloud Compute portals shows the global data centers listed for your organization.
- Click a data center name to view a list of resources specific to that data center. When you click a data center name, a heirarchy of your resources such as clusters, hosts, and servers associated with each data center opens.
This view shows the name of the cluster, host, and servers. The view also shows you the IP address for each instance, the CPU, and RAM space with the amount in use.

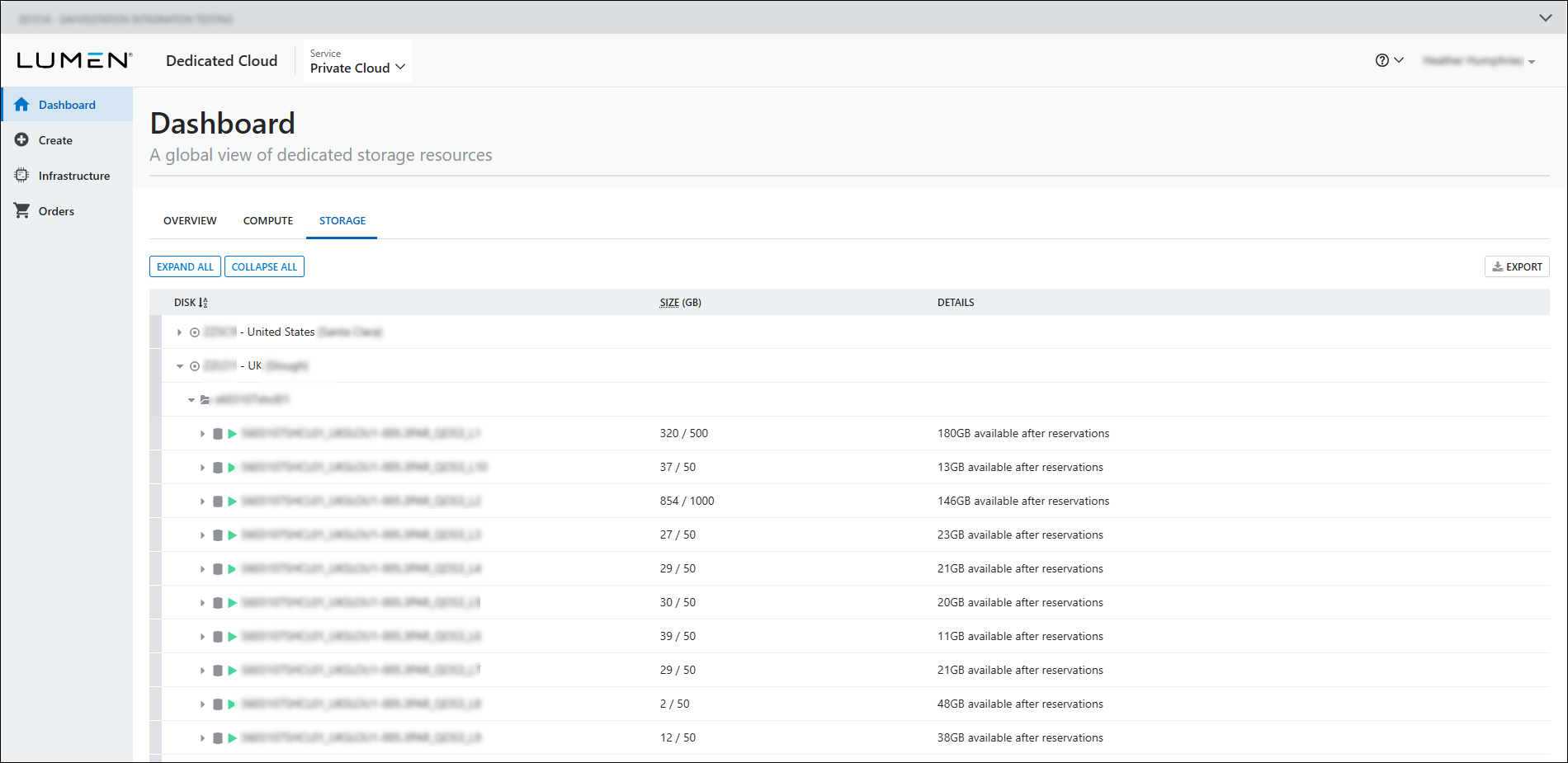

Storage
To view a list of global data center storage resources:
- Sign in to the Managed Services portal.
- Using the left navigation, click Dashboard, then click Storage.
The Dedicated Cloud Compute portal shows the global storage resources for your organization.
- Click a data center name to view a list of resources specific to that data center. When you click a data center name, a heirarchy of your resources such as clusters, hosts, and servers associated with each data center opens.
This view shows the name of the cluster, data stores, and hard disks for each data center. This view also shows total storage, amount of storage in use, and details for the data store and boot disk.
- To delete a boot disk from your data store, hover over the boot disk name, then click delete.
The DCC portal deletes the hard disk from the data store.
